The liquid crystal display module and the liquid crystal module refer to components for assembling a liquid crystal display device, a connecting member, a peripheral circuit for controlling and driving, a PCB circuit board, a backlight, and a structural member.
The technical specifications of the liquid crystal display module (LCM) currently available from Xin Hongtai are as follows:
The number of dot matrix is: 122*32, 128*64, 160*32, 256*32, 192*64, 240*64, 160*128, 240*128, 256*128, 320*240, 640*200, etc. Product
Working temperature: normal temperature 0 ~ +50 ° C, wide temperature -20 ~ +70 ° C, ultra wide temperature -30 ~ + 80 ° C;
Interface type: 3-wire or 4-wire SPI serial port, 8-bit or 16-bit MCU parallel port, I2C, RS232 or RS485, USB interface;
Display mode: black on white, black on yellow and green, black on blue, white on blue, white on black, custom silk screen, etc.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

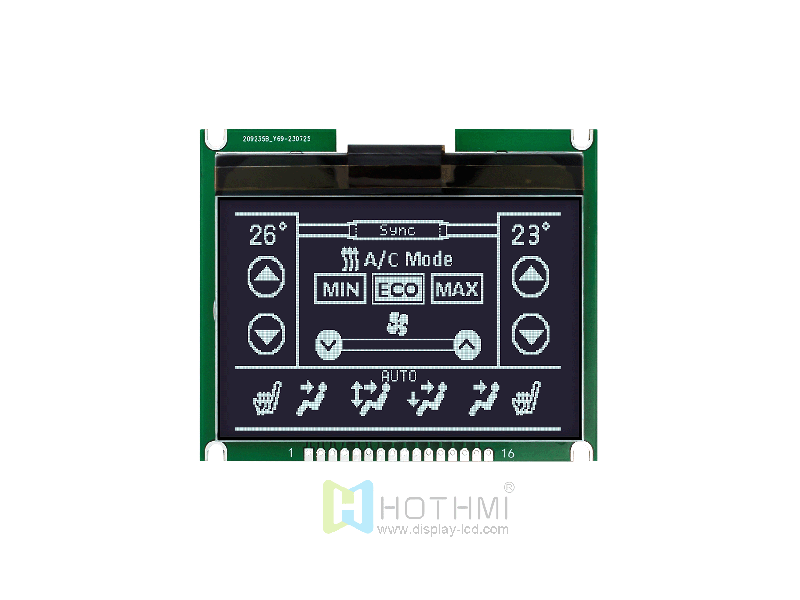

| 3.6 inch 240x160 Graphic LCD Liquid Crystal Dot Matrix Module/MCU/ST7529/Arduino/Transmissive Polaroid HTM240160P-35S-N3P-V01 | Graphic LCD Module | 240x160 |
|
84.5x71x5.5 | 77.5x48 | 77.42x44.96 | 0.261x0.261 | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7529 | |||

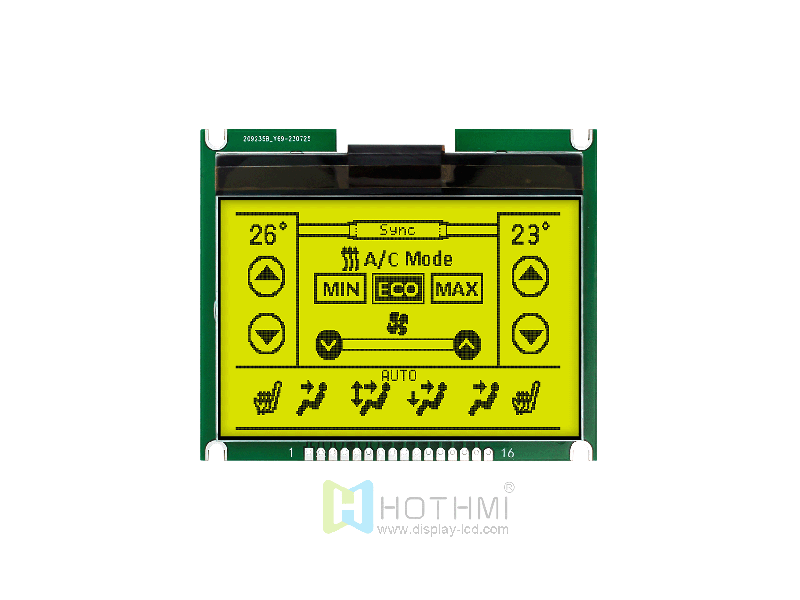

| 3.6 inch 240x160 Graphic LCD Dot Matrix Module | STN+Yellow-green Backlight | MCU | ST7529 | Arduino HTM240160P-11Y-N3P-V01 | Graphic LCD Module | 240x160 |
|
84.5x71x5.5 | 77.5x48 | 77.42x44.96 | 0.261x0.261 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7529 | ||
| 3.6 inch 240x160 Graphic LCD Liquid Crystal Dot Matrix Module | STN+Yellow-green Backlight | MCU | ST7529 | Arduino HTM240160P-11Y-N3P-V01 | Graphic LCD Module | 240x160 |
|
84.5x71x5.5 | 77.5x48 | 77.42x44.96 | 0.261x0.261 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7529 | ||
| 3.6 inch 240x160 Graphic LCD Liquid Crystal Dot Matrix Module | STN+ | MCU | ST7529 | Arduino HTM240160P-11W-N3P-V01 | Graphic LCD Module | 240x160 |
|
84.5x71x5.5 | 77.5x48 | 77.42x44.96 | 0.261x0.261 | 6H | 16PIN | MCU | 防靜電ESD 8KV | -20~70℃ | +3.3V | ST7529 | ||

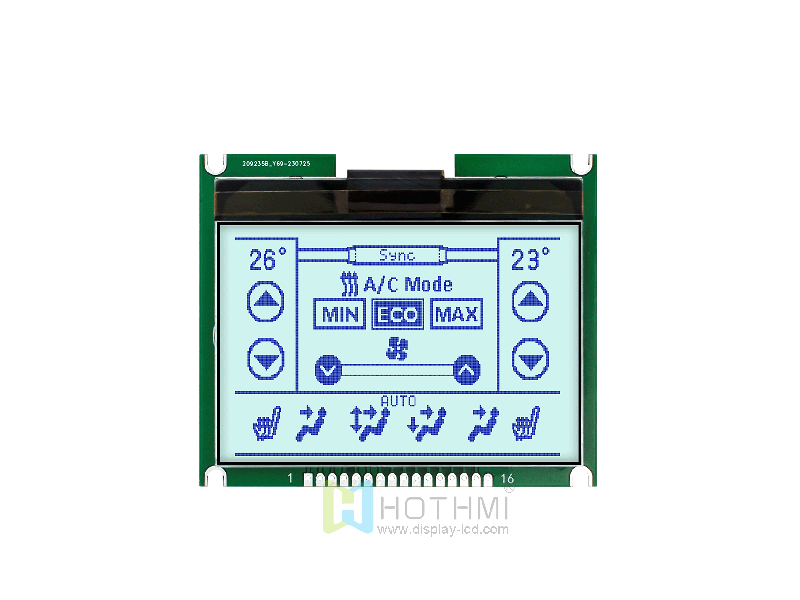

| 3.6 inch 240x160 Graphic LCD Liquid Crystal Dot Matrix Module/DFSTN-/3.3 V/MCU | ST7529/Arduino HTM240160P-41W-N3P-V01 | Graphic LCD Module | 240x160 |
|
84.5x71x5.5 | 77.5x48 | 77.42x44.96 | 0.261x0.261 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7529 | ||

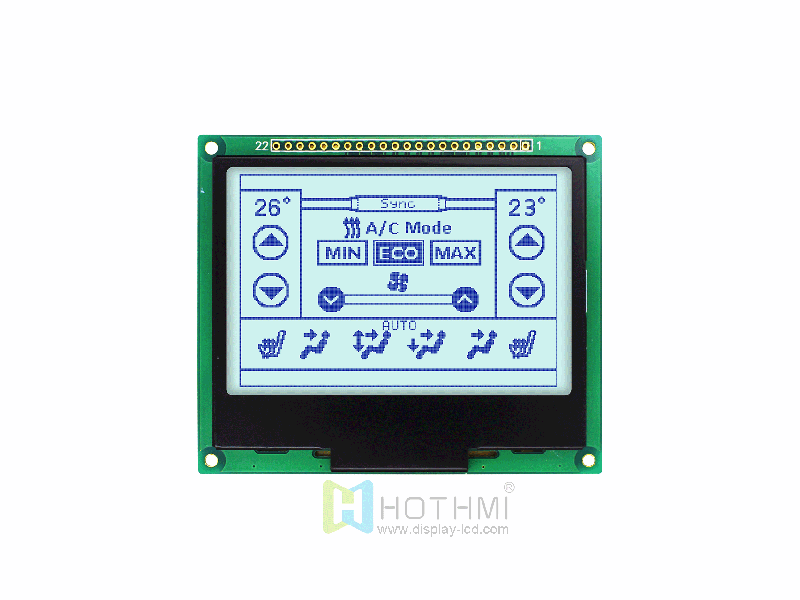

| 3.6 inch 240x160 Graphic LCD Liquid Crystal Dot Matrix Module | STN- | White on Blue | MCU | ST7529 | Arduino HTM240160P-25W-N3P-V01 | Graphic LCD Module | 240x160 |
|
87.0x73.0x10.0 | 72.9x48.0 | 67.42x44.94 | 0.281x0.261 | 6H | 18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7529 | ||

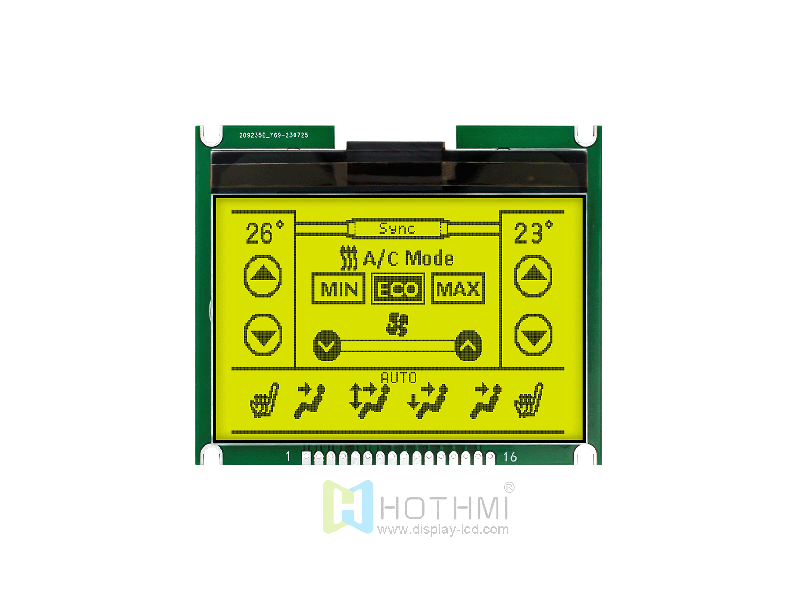

| 3.6" 240x160 Graphic Dot Matrix Module | STN+ Yellow-Green Backlight | MCU | ST7529 | Arduino HTM240160P-01Y-N3P-V01 | Graphic LCD Module | 240x160 |
|
84.5x71x5.5 | 77.5x48 | 77.42x44.96 | 0.261x0.261 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7529 | ||

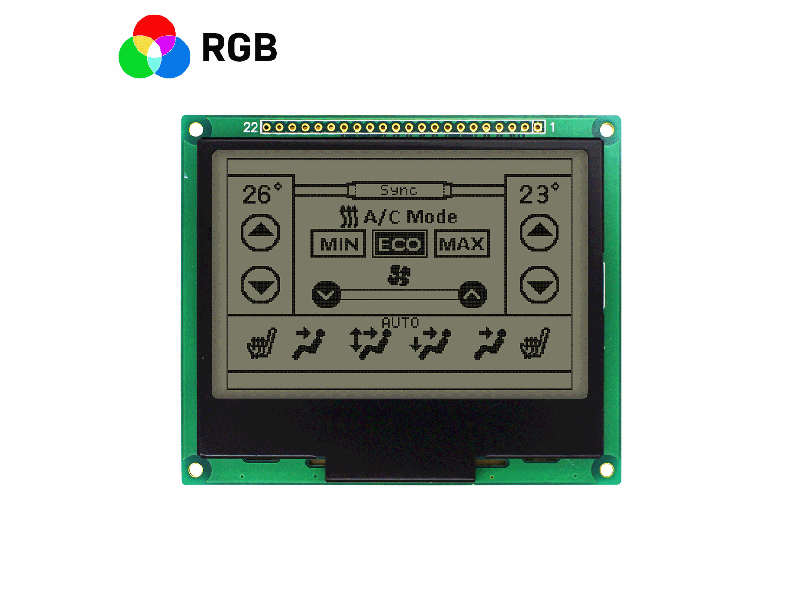

| 3.4 inch 240x160 Graphic LCD Dot Matrix Module/FSTN+/MCU/ST7529/Arduino/Red Green Blue Backlight HTM240160F-35S-N3P | Graphic LCD Module | 240x160 |
|
87.0x73.0x10.0 | 72.9x48.0 | 67.42x44.94 | 0.281x0.261 | 6H | 18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7529 | ||

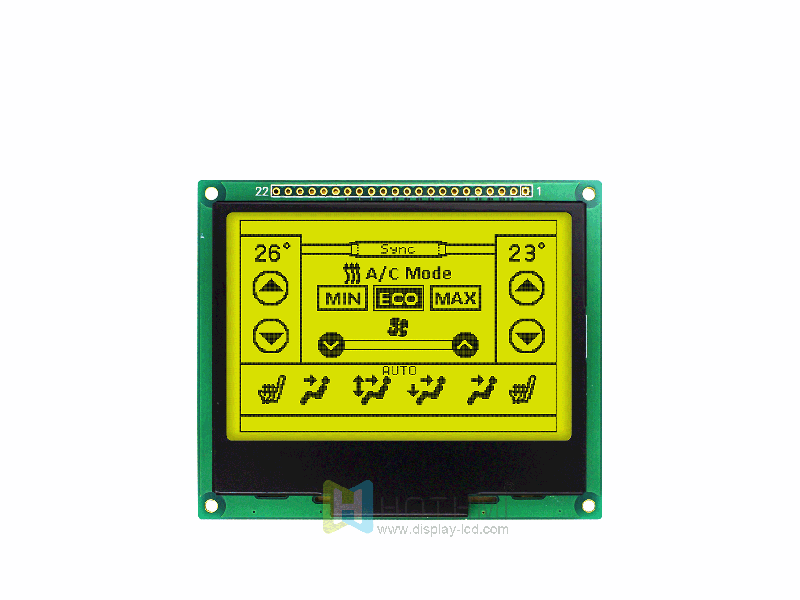

| 3.4 inch 240x160 Graphic LCD Dot Matrix Module | STN Positive Display | MCU | ST7529 | Arduino HTM240160F-11Y-N3P | Graphic LCD Module | 240x160 |
|
87.0x73.0x10.0 | 72.9x48.0 | 67.42x44.94 | 0.281x0.261 | 6H | 18PIN | MCU | 防靜電ESD 8KV | -20~70℃ | +3.3 V | ST7529 | ||

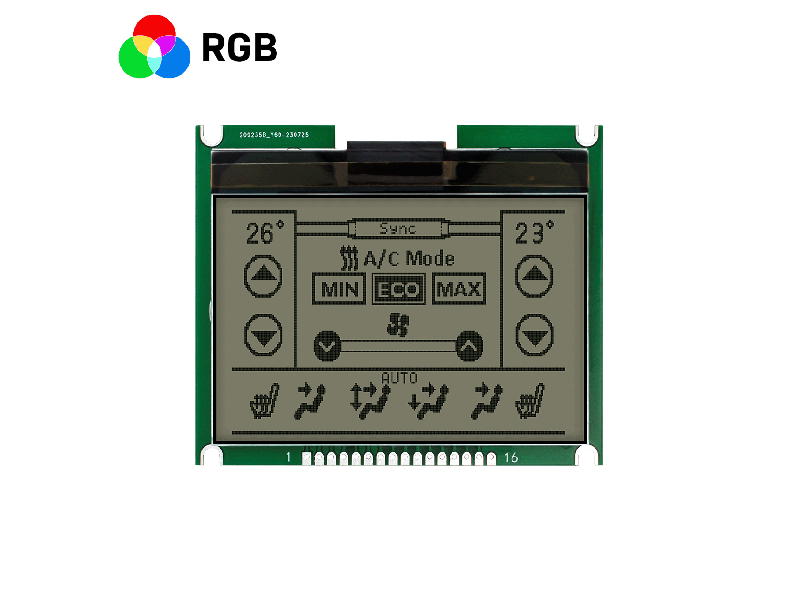

| 3.4 inch 240x160 Graphic LCD Dot Matrix Module | STN+ | MCU | ST7529 |Arduino HTM240160F-11W-N3P | Graphic LCD Module | 240x160 |
|
87.0x73.0x10.0 | 72.9x48.0 | 67.42x44.94 | 0.281x0.261 | 6H | 18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7529 |
